Evaluating Window Options for Energy Efficient Architecture

Evaluating Window Options for Energy Efficient Architecture - Decoding the Performance Data U-Factor and Beyond

When assessing window capabilities for truly energy-conscious design, delving into the technical performance data is indispensable. At the core of this lies the U-Factor, the primary indicator of a window's thermal transmittance – essentially, how readily heat passes through it. A smaller number here signifies superior insulating performance, directly impacting a building's ability to maintain stable internal temperatures and mitigate energy consumption required for heating or cooling. Complementing this is the Solar Heat Gain Coefficient (SHGC), which quantifies the amount of solar radiation allowed to enter through the glass, influencing cooling loads and potential passive heating strategies. Navigating these metrics accurately is fundamental; simply quoting the numbers isn't enough – understanding their real-world implications is paramount for architects selecting glazing that genuinely supports energy efficiency targets rather than just meeting minimum standards. As regulatory landscapes and energy performance expectations continue to tighten, facility with interpreting these specifications is becoming a foundational requirement for practice.

Delving deeper into window performance metrics beyond the widely understood U-factor reveals several complexities critical for holistic energy-efficient design, as understood on 08 Jun 2025. Consider these points:

1. Separate from thermal conduction and convection measured by the U-factor, uncontrolled air infiltration through the window assembly constitutes another significant energy loss pathway. This can, under certain pressure differentials or high wind conditions, sometimes contribute as much or even more to overall energy transfer and significantly degrade occupant comfort through drafts, a factor the U-factor itself does not capture.

2. The published whole-window U-factor is a composite figure. In reality, the frame materials and the edge-of-glass area around the insulating glass spacer typically exhibit significantly lower thermal resistance than the center-of-glass region. These areas act as thermal bridges, disproportionately increasing localized heat flow and pulling down the overall insulating performance relative to the potential of the central glazing pane itself.

3. While directly quantifying light transmission, Visible Transmittance (VT) indirectly serves as an energy performance indicator. Higher VT values can facilitate increased use of natural daylighting, thereby reducing the need for electrical artificial lighting. This translates into lower electricity consumption and consequently reduces internal heat gains from lighting fixtures, impacting cooling loads.

4. An optimized energy performance strategy for a building envelope rarely involves specifying a single, uniform U-factor and Solar Heat Gain Coefficient (SHGC) for all windows. Effective design demands adjusting these performance metrics based on orientation (North, South, East, West) to manage varying solar exposures and balance passive solar heating opportunities against the risks of overheating and seasonal heat loss.

5. The standard SHGC rating is determined based on solar radiation striking the window perpendicularly. However, actual solar gain experienced by a window in situ varies considerably as the sun's angle of incidence changes throughout the day and year. Relying solely on the perpendicular SHGC value can be a simplification of the complex, dynamic solar heat transfer process under real-world conditions.

Evaluating Window Options for Energy Efficient Architecture - Glazing and Fill Technologies What's Currently Available

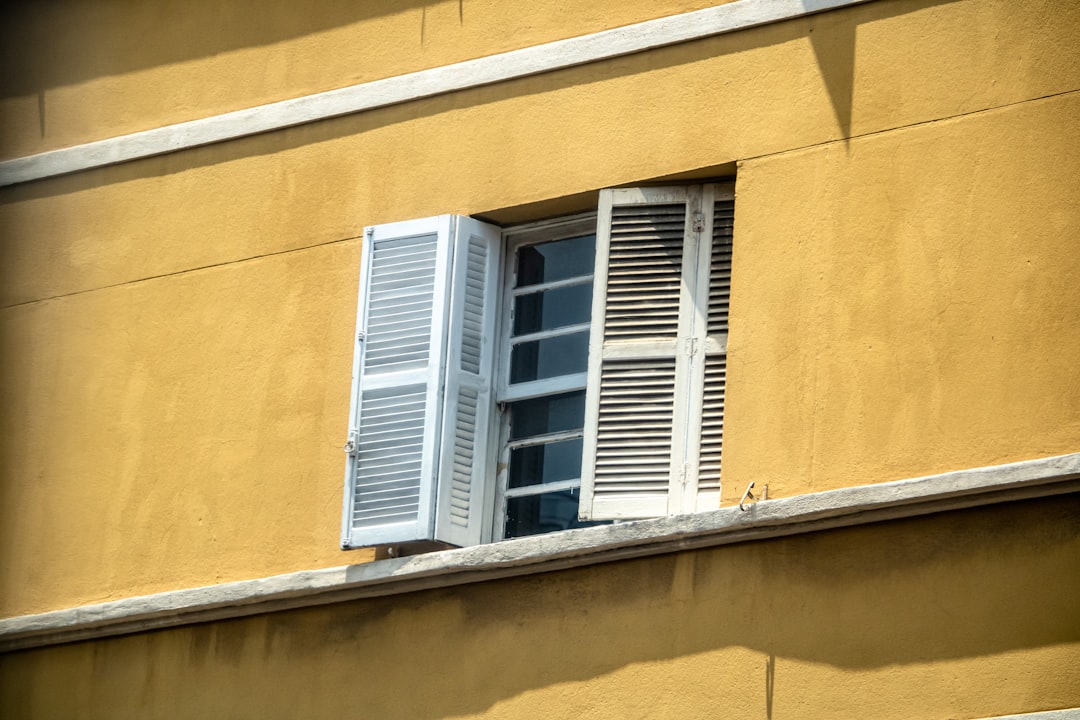

a window on a building,

In the evolution of energy-conscious construction, current glazing and fill technologies represent a significant shift towards enhancing building performance. The prevalent approach now centers around sophisticated Insulating Glass Units (IGUs) comprising multiple panes, typically two or three, creating sealed cavities. A critical aspect of these units involves the 'fill' within these cavities, moving beyond standard air to utilize inert gases like argon or krypton. These denser gases are specifically employed to reduce heat transfer through conduction and convection between the glass panes, thereby improving the thermal insulating performance of the window assembly. Furthermore, selective coatings are widely applied to glass surfaces. While historically focused on Low-E properties, contemporary coatings are becoming more refined to manage specific portions of the solar spectrum, aiming to balance desirable daylighting with necessary solar heat gain control, depending on climate and orientation. Attention is also given to the edge construction of the IGU, particularly the spacer material, which is designed to minimize thermal bridging inherent where the glass unit meets the frame, an area historically prone to heat loss. Critically evaluating these systems requires understanding that the performance is not solely dictated by individual components but by the complex interaction between the glass type, coating characteristics, gas fill composition, and the design of the spacer and seal. Achieving genuinely high energy efficiency relies on the coherent performance of this integrated system under the variable conditions experienced in the built environment.

Stepping into the specifics of how insulating glass units achieve their thermal and solar performance brings focus to the components within the sealed perimeter. Five notable aspects of current glazing and fill technologies warrant consideration:

Firstly, beyond the familiar dry air, various inert gases are employed as fills between glass panes to reduce conductive and convective heat transfer. While Argon is widely used for its balance of cost and performance, denser gases like Krypton or even Xenon exhibit lower thermal conductivity. These heavier noble gases become particularly advantageous in the narrower cavities often specified in triple-pane units or other configurations where convection is significantly suppressed, allowing their superior conductivity performance to dominate. However, their higher cost and availability can limit widespread adoption.

Secondly, low-emissivity (low-E) coatings applied to glass surfaces are fundamental. These microscopically thin, virtually invisible layers primarily function by reducing radiative heat transfer across the air or gas gap. More sophisticated versions are 'spectrally selective,' engineered to strategically transmit desirable visible light wavelengths while reflecting specific portions of the solar spectrum, particularly the near-infrared heat energy. The precise spectral tuning of these coatings dictates their solar heat gain coefficient (SHGC) and visible transmittance (VT) balance, critical for managing solar gain in diverse climates and orientations.

Thirdly, vacuum insulated glazing (VIG) represents a significant leap by evacuating the space between two panes down to a vacuum level. This effectively eliminates convection and conduction through the gap medium itself, leaving only radiative transfer and conduction through minimal structural spacers to consider. Consequently, VIG units can potentially achieve center-of-glass U-factors approaching those of highly insulated opaque walls. Practical challenges, such as maintaining the vacuum seal over decades and managing stress from atmospheric pressure, remain key technical hurdles influencing widespread implementation.

Fourthly, 'smart' glazing technologies like electrochromic or thermochromic glass introduce dynamic control over optical properties. Electrochromic glazing changes its tint and associated SHGC upon the application of a low-voltage electrical current, allowing users or building systems to actively manage solar heat gain and glare. Thermochromic glazing, conversely, changes its state passively in response to surface temperature. While offering compelling possibilities for responsive facades, current iterations face challenges in terms of switching speed, cost, durability, and the range of achievable visible transmittance and SHGC values compared to high-performance static options.

Finally, the construction of the insulating glass unit itself, specifically the number of panes and resultant cavities, is critical. Adding panes divides the insulating space into multiple discrete gaps. Even with the same total airspace, smaller individual cavities significantly suppress convection currents within each space compared to a single larger gap. This reduction in convective heat transfer enhances the effectiveness of the low thermal conductivity of the gas fill (be it air or inert gas), contributing substantially to achieving lower overall U-factors for multi-pane units.

Evaluating Window Options for Energy Efficient Architecture - Frame Material Choices An Assessment

The selection of frame materials is a pivotal consideration when designing for energy-efficient architecture, profoundly affecting a window assembly's thermal performance and longevity. Common choices include wood, which offers inherently good insulation but necessitates careful maintenance to preserve its integrity. Aluminum, while strong and durable, is a highly conductive material and requires integral thermal breaks to prevent it from acting as a significant thermal bridge, a common challenge that can undermine overall energy performance if not addressed. Vinyl frames are often a more economical option, providing reasonable insulation and requiring minimal maintenance; however, their structural stability and aesthetic limitations can be drawbacks in certain architectural applications. Fiberglass presents an alternative known for its thermal efficiency and dimensional stability, often offering a good balance of performance characteristics. Ultimately, the frame material's contribution to the whole window's thermal resistance, along with considerations of durability, maintenance requirements, and aesthetic fit, are all crucial aspects to weigh when targeting genuinely high energy efficiency goals in building design.

Beyond the simple thermal conductivity numbers often cited, the choice of frame material introduces several critical performance considerations worth closer scrutiny from an engineering perspective:

1. The inherent rigidity and dimensional stability of a frame material, coupled with how it accommodates effective sealing interfaces, often dictates its ability to prevent incidental air leakage – a performance aspect distinct from thermal conduction but equally vital for energy integrity under fluctuating pressure differentials.

2. Differing coefficients of thermal expansion between frame material and glass exert varying stresses on the critical perimeter seal of the insulating glass unit over prolonged operational cycles, potentially compromising seal integrity and retention of beneficial inert gas fills.

3. For materials with high inherent thermal conductivity, such as metals, the incorporation of structurally robust "thermal breaks" – non-conductive internal barriers – is essential to segment the conductive pathway, effectively mitigating thermal bridging and enabling competitive overall frame U-factors despite the base material property.

4. In window systems engineered for extremely low overall U-factors, the relative thermal performance of the frame assembly and the edge-of-glass region (often mediated by the spacer technology) disproportionately influences the final whole-window U-factor, frequently becoming the primary limiting factor even when the center-of-glass exhibits exceptional insulating properties.

5. The external surface finish and color of the frame significantly impact its solar absorptivity, potentially leading to substantial temperature increases under direct sunlight, which contributes to localized heat gain and imposes thermal stresses on the frame-to-glass interfaces and joinery.

Evaluating Window Options for Energy Efficient Architecture - Site Specifics Climate Orientation and Application

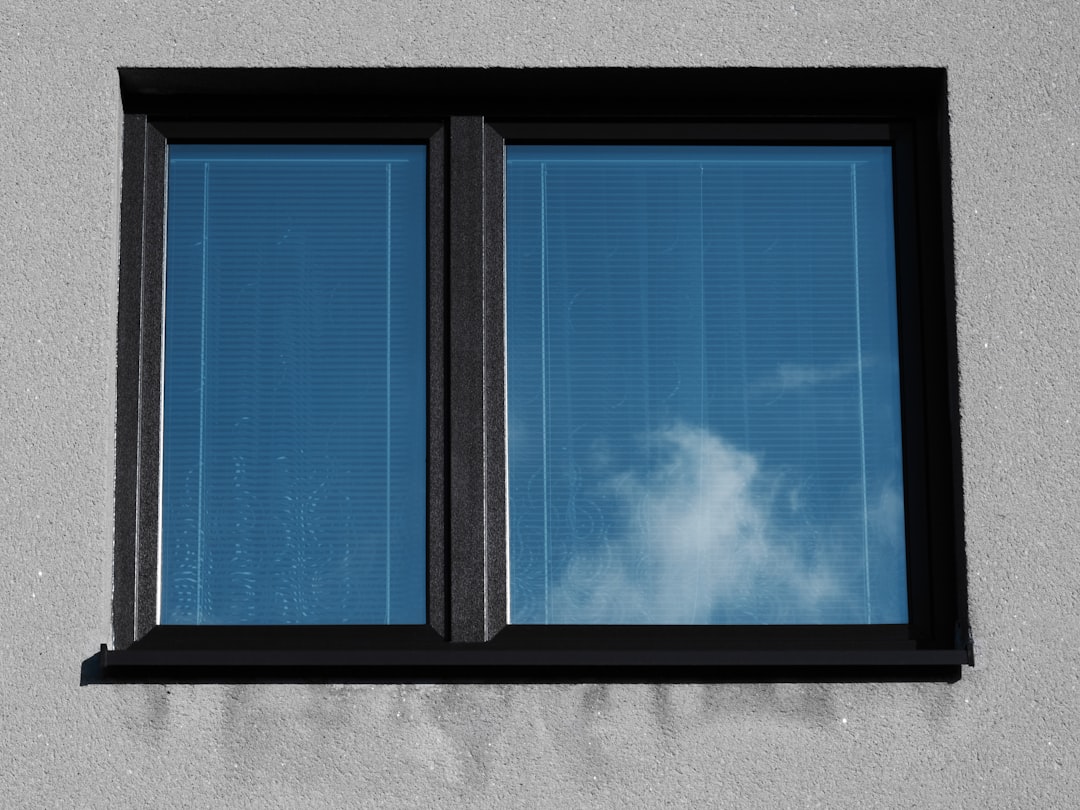

a window with a blue sky and clouds reflected in it,

Designing for genuinely energy-efficient architecture necessitates a deep understanding of how a window's performance is inextricably linked to its context – the local climate, specific site conditions, and its orientation on the building facade. This is far from a one-size-fits-all situation; optimizing window characteristics involves navigating the complex interplay of variable solar exposure, wind patterns, and thermal loads that differ significantly depending on compass direction and time of day or year. Successfully balancing opportunities like passive solar heating against risks like overheating and increased cooling demand requires a nuanced approach that goes beyond applying standardized specifications. Overlooking these site-specific complexities and relying on generalized performance targets can inevitably lead to compromises in overall building energy performance. The intricate interdependence of climate, orientation, shading, and window properties means there isn't a simple, universally applicable answer for window selection.

Examining how windows truly perform in a building necessitates looking beyond laboratory ratings and considering the specific environment they inhabit.

1. A structure's actual physical location presents highly specific conditions; microclimates influenced by elements like nearby topography, water bodies, vegetation, and surrounding building massing can generate localized temperature, humidity, and wind patterns that diverge notably from published regional climate data, potentially altering a window's real-world energy transfer characteristics.

2. For facades with significant solar exposure, particularly south-facing ones, selecting the optimal Solar Heat Gain Coefficient (SHGC) is a careful act of balance. While a lower SHGC is usually favored to reduce summer cooling loads, a value that is too low can prevent beneficial passive solar heating during colder months, making the ideal choice highly dependent on the building's heating/cooling system strategy and the site's seasonal climate profile.

3. East and west orientations pose a particular challenge due to low-angle solar radiation in the morning and afternoon. Under these conditions, standard SHGC values derived from perpendicular incidence don't fully capture the complex solar gains, which are significantly influenced by the sun's highly variable angle throughout the day, often making external shading measures critical companions to the window itself.

4. The building's intended function and occupancy profile are paramount; an office building with high internal heat gains from people and equipment presents a fundamentally different set of energy performance priorities (often emphasizing SHGC control) compared to a low-occupancy residential structure where minimizing conductive heat loss (U-factor) might dominate the equation, even within the same climate zone.

5. Site-specific wind conditions and their interaction with building geometry can generate fluctuating positive and negative pressure zones across facades. This dynamic can drive significant air infiltration or exfiltration through even minor imperfections in window seals and frames, representing an energy loss pathway that can, under certain circumstances, contribute substantially to the total heat load and may not be fully captured by laboratory U-factor ratings alone.

Evaluating Window Options for Energy Efficient Architecture - Methods for Comparing Window Assembly Performance

Evaluating how different window assemblies measure up involves navigating a landscape of comparison methods. Common practice relies on standardized performance ratings found on labels, alongside the use of simple lookup tables or software tools. More detailed assessments might involve project-specific energy modeling simulations. However, a critical look reveals limitations in simply applying these typical methods. Standardized ratings, while useful as a baseline, often represent idealized laboratory conditions and may not fully capture the nuanced interplay of thermal, solar, and airtightness performance when installed in a real building experiencing variable site conditions and operational stresses. Furthermore, many comparative methods focus primarily on thermal metrics like U-factor and SHGC, sometimes underselling the significant contribution of air and water leakage pathways, which require specific testing standards to quantify but aren't always integrated into broad comparative tools. Therefore, effective performance comparison demands methods that synthesize these diverse factors, moving beyond single-metric lists or idealized scenarios towards a more integrated evaluation framework that reflects in-situ realities.

It's quite fascinating how much we rely on computational models, specifically standardized thermal simulation protocols, to assign a U-factor to a window assembly. Instead of physically building and testing every possible variant, these models crunch the numbers for the whole system, incorporating how different components like the frame and glass interact thermally. This simulation-based approach is how we manage to get comparable numbers across a vast array of designs, which is less about pure physical measurement and more about a consistent computational standard for rating as of 08 Jun 2025.

Assessing air infiltration, a distinct path for energy loss, is done under a specific laboratory protocol – essentially putting the window under a static pressure equivalent to a rather significant wind load, like 75 Pascals, and measuring the flow. This isn't necessarily how air moves through the window on an average breezy day; rather, it's a standardized stress test for the seal integrity, designed to provide a comparative 'worst-case' snapshot of how well it resists leakage when pushed, serving as a benchmark.

The numerical gymnastics involved in calculating a standard whole-window U-factor are interesting. The methodologies don't treat the glass simply as one uniform area; they deliberately carve it up, designating distinct regions like the 'center-of-glass' and the 'edge-of-glass.' Different thermal properties are assigned to these zones in the calculation – acknowledging that the glass area near the spacer and frame behaves quite differently thermally than the central expanse. This zonal approach is a crucial step in creating a standardized, comparable figure, even if it's an abstraction of the continuous reality for calculation purposes.

It's important to remember that those neatly presented U-factor and SHGC numbers stem from tests or simulations conducted under strictly controlled, almost sterile, laboratory conditions – static temperatures, zero air movement on the surfaces, often fixed angles for solar properties. While this provides a wonderfully consistent baseline for comparing one product against another, it inherently bypasses the messy, dynamic, and fluctuating conditions a window experiences out in the actual weather – sun intensity changing angle and strength, wind swirling, temperatures varying hourly. The standard rating is fundamentally a static snapshot.

When we start looking at adaptive technologies, like electrochromic glass that changes tint on command, relying solely on the standard static U-factor and SHGC metrics feels distinctly incomplete for a performance comparison. Those ratings describe a fixed state, maybe "fully clear" or "fully tinted." They simply don't encapsulate the performance range, how the property changes over time or in response to conditions, nor do they account for the (admittedly small, but non-zero) energy draw required to actually make the glass change state. Comparing dynamic behavior using only static labels feels like trying to describe a movie with just a single photograph.
